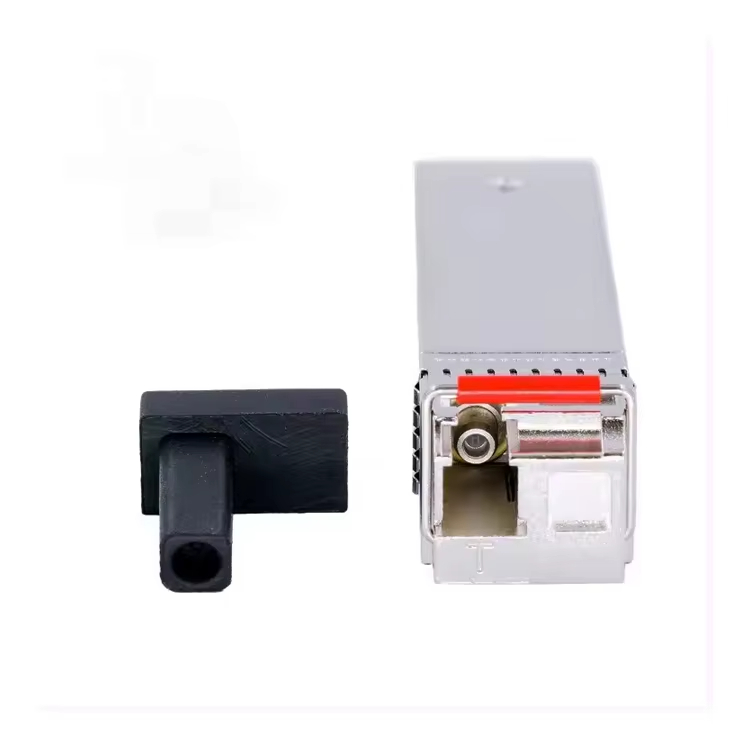

25G BiDi SFP28 40km 1270nm1310nm LC Bidirectional Optical Transceiver

Overview

SFP28 25G Bidi SMF 1270nm/1330nm 40km LC DDM

25GBASE BIDI SFP28 transceiver modules are designed for use in wireless front-haul links on up to 40km of single mode fiber. This bidirectional unit must be used with another transceiver or network appliance of complimenting wavelengths. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center. They are compliant with the SFF-8472,SFF-8402,SFF-8432 IEEE802.3cc and applicable portions of SFF-8431.It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.

【 Specification 】

Feature:

1. Hot-pluggable SFP28 form factor 2. Supports 9.83/10.13/10.31/24.33/25.78Gb/s bit rate 3. Power dissipation <1.2W 4. Industrial case temperature range of -40°C to 85°C 5. Single 3.3V power supply 6. Maximum link length of 40km on Single Mode Fiber (SMF) 7. Aligned with IEEE 802.3cc 8. 25G DFB transmitter and 25G PIN receiver 9. Single LC receptacles 10. I2C management interface 11. RoHS compliant
