| Form Factor: | SFP28 |
| Max Data Rate: | 25.78Gbps |
| Wavelength: | 850nm |
| Optical Component: | VCSEL/PIN |
| Powerbudget: | -1.9dB |
| Power Consumption: | ≤1W |
| Extinction Ratio: | >2dB |
| Commercial Temperature Range: | 0 to 70°C (32 to 158°F) |
Overview
SFP28 25G MMF Tx850nm 100m LC DDM
Seratlink's SFP28-25G-SR is designed for use with Cisco 25 Gigabit Ethernet connectivity in data center and high-performance computing networks applications. It is programmed and tested to perform identical to original Cisco SFP-25G-SR-S 25GBASE-SR SFP28 Module and provide a cost-effective replacement. It can be used in 25 GE SFP28 ports of Cisco Fiber Switches, Routers, Line cards, and so on. The SFP28 SR module support max links of 70m over OM3 or 100m over OM4 multi-mode fiber equipment.
Feature:
>> Supports up to 25.78Gbps bit rates
>> Hot-pluggable SFP+ footprint

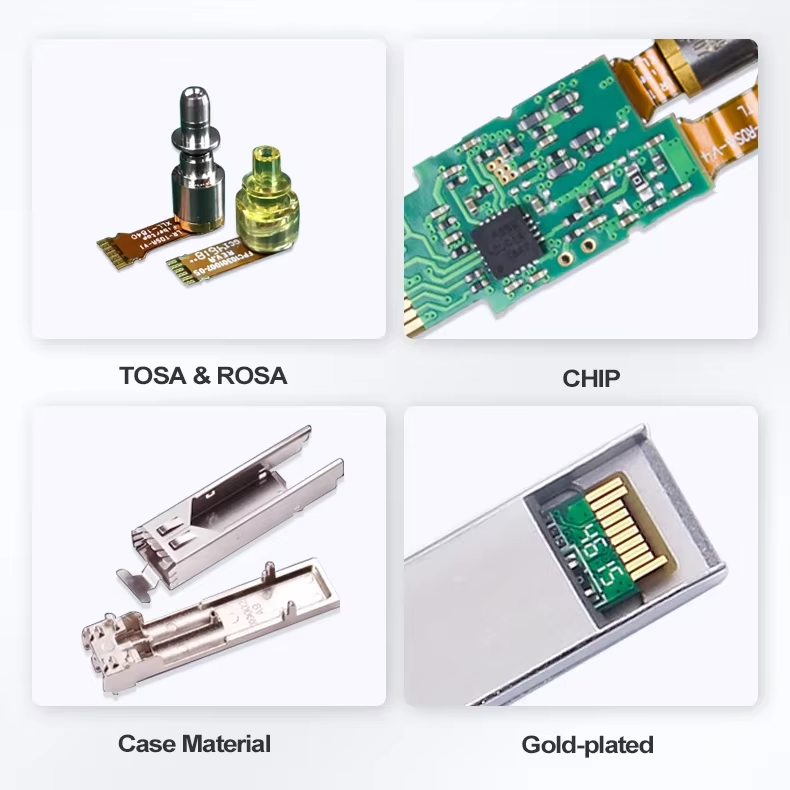

>> 850nm VCSEL laser and PIN photodiode
>> Up to 70m for OM3-MMF and 100m for OM4-MMF transmission

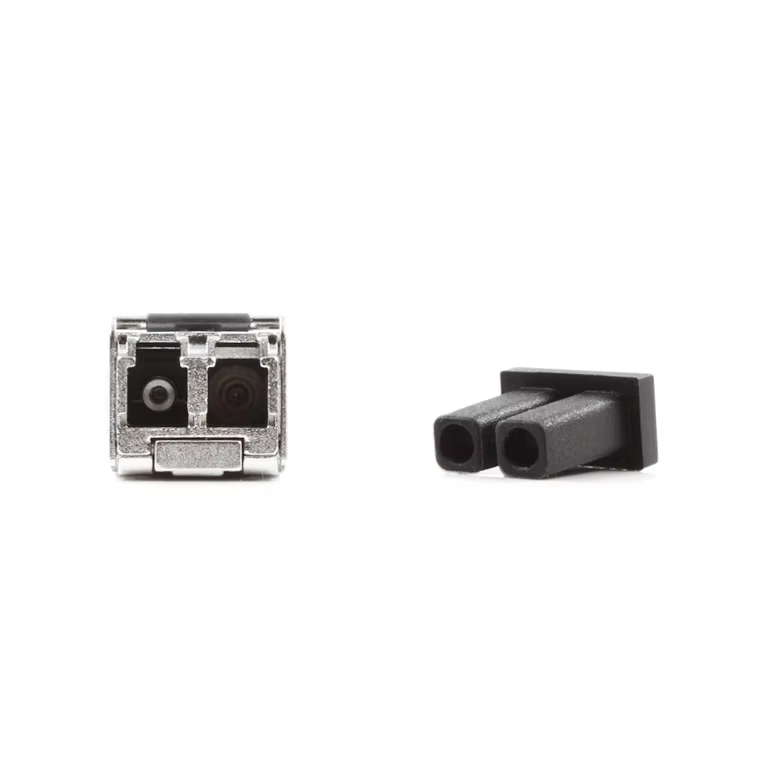

>> Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
>> Single +3.3V power supply
>> Real Time Digital Diagnostic Monitoring
>> Operating case temperature:Standard: 0 to +70°C
HOTLISTS
Model | Data Rate | Wavelength | Distance | Connector |
SFP28-25G-SR | 25G | 850nm | 100m | Dual LC |
SFP28-25G-LR | 25G | 1310nm | 10km | Dual LC |
SFP28-25G-ER | 25G | 1310nm | 40km | Dual LC |
SFP28-25G-BIDI-10KM | 25G | 1270/1330nm | 10km | BiDi LC |
SFP28-25G-BIDI-40KM | 25G | 1270/1330nm | 40km | BiDi LC |
