| Form Factor: | SFP28 |
| Max Data Rate: | 25.78Gbps |
| Wavelength: | 1310nm |
| Connector: | Duplex LC |
| Output Power: | -7～+2dBm |
| Protocols: | SFF-8472, SFF-8024, SFF-8431, SFF-8432 |
| Sensitivity: | ≦-12.0dBm |
| Media: | SMF |
Overview

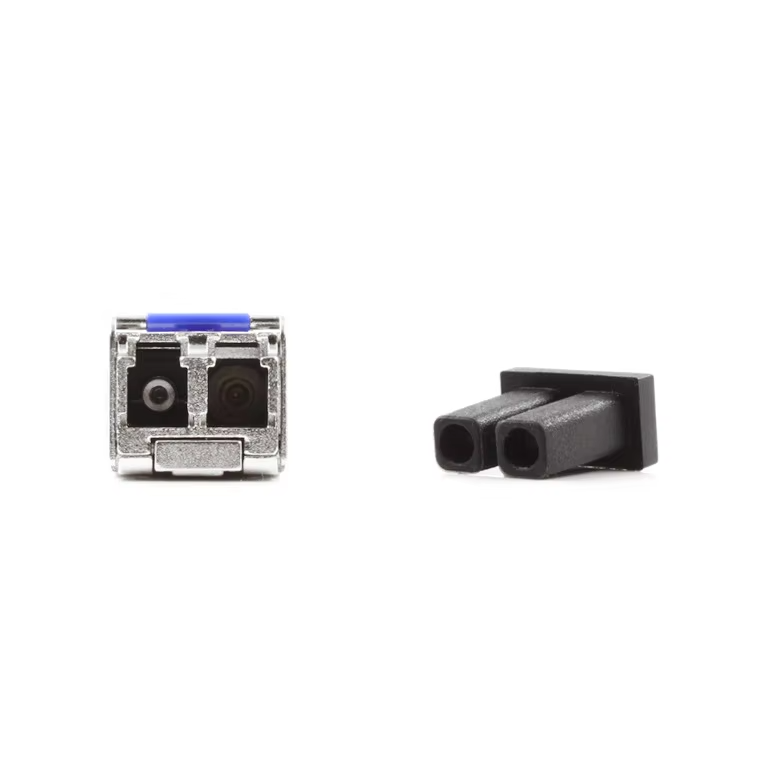

SFP28 25G 1310nm 10Km LC DDM

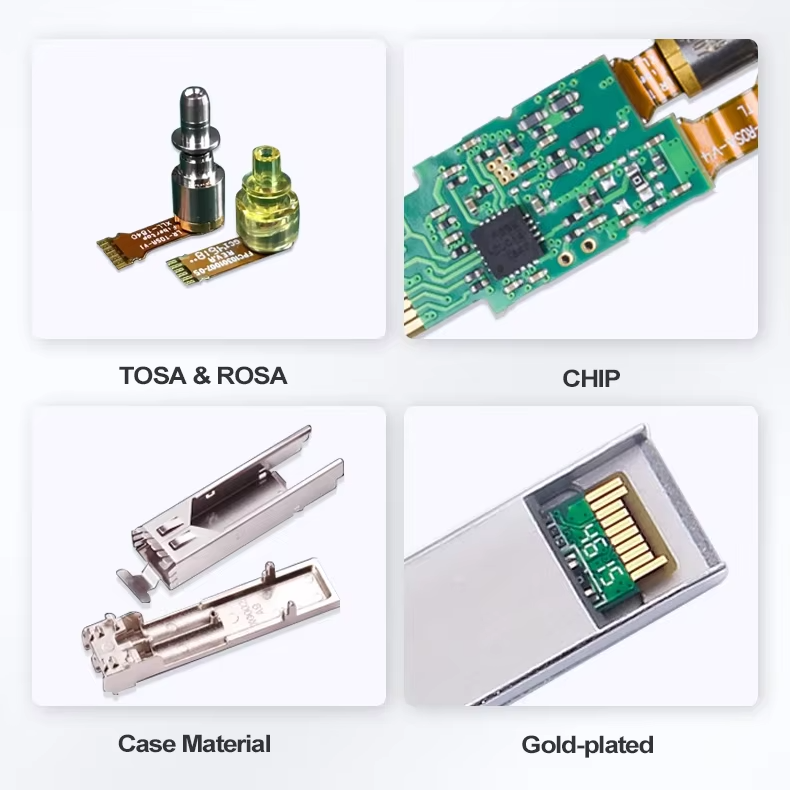

The SFP28 transceivers are high performance, cost effective modules supporting data rate of 25.78Gbps and 10km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Feature:
>> Supports up to 25.78Gbps bit rates
>> Hot-pluggable SFP+ footprint
>> 1310nm DFBlaser and PIN photodiode, Up to 10km for SMF transmission
>> Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
>> Single +3.3V power supply
>> Real Time Digital Diagnostic Monitoring
>> Operating case temperature:Standard: 0 to +70°C
HOTLISTS
Model | Data Rate | Wavelength | Distance | Connector |
SFP28-25G-SR | 25G | 850nm | 100m | Dual LC |
SFP28-25G-LR | 25G | 1310nm | 10km | Dual LC |
SFP28-25G-ER | 25G | 1310nm | 40km | Dual LC |
SFP28-25G-BIDI-10KM | 25G | 1270/1330nm | 10km | BiDi LC |
SFP28-25G-BIDI-40KM | 25G | 1270/1330nm | 40km | BiDi LC |
