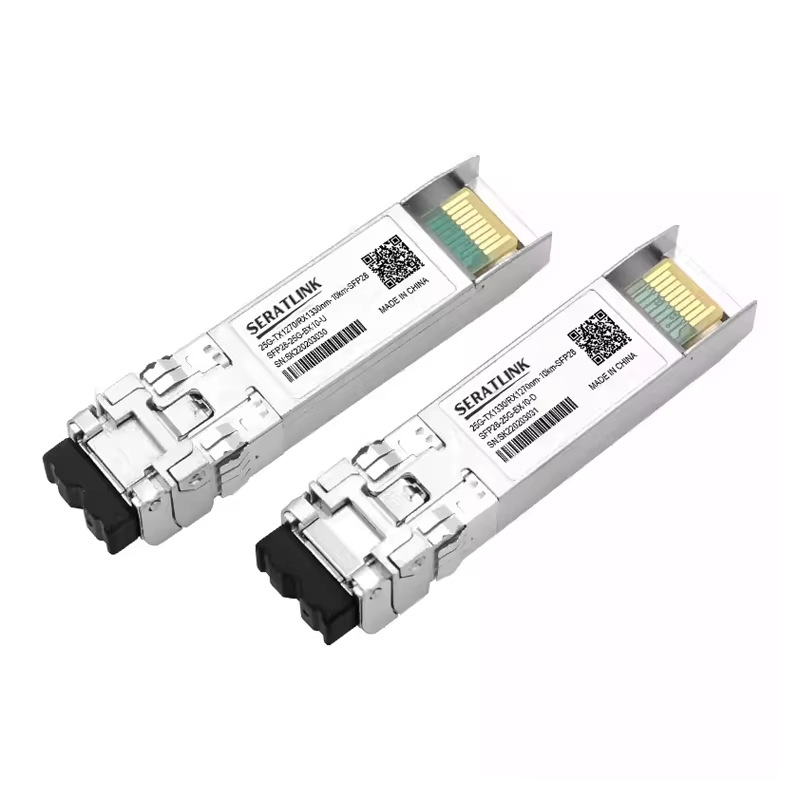

25G SFP28 BiDi 10km 1270nm1330nm Simplex LC SMF Optical Transceiver Module

Overview

SFP28 25G Bidi SMF 1270nm/1330nm 10km LC DDM

25GBASE BIDI SFP28 transceiver modules are designed for use in wireless front-haul links on up to 10km of single mode fiber. This bidirectional unit must be used with another transceiver or network appliance of complimenting wavelengths. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center. They are compliant with the SFF-8472,SFF-8402,SFF-8432 IEEE802.3cc and applicable portions of SFF-8431.It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.

Feature:

>> Up to 10KM transmission distance >> Support Multi Rate 9.8304~25.78125Gbps >> 1270nm DFB and 1330nm PIN receiver >> SFI electrical interface >> 2-wire interface for integrated Digital Diagnostic monitoring >> SFP+ MSA package with duplex LC connectors >> Hot pluggable >> Very low EMI and excellent ESD protection >> +3.3V power supply >> Power consumption less than 1.0 W >> Operating case temperature: 0~70°C
