| Product Name: | 10G SFP+ BIDI LR 1270nm/1330nm 10Km LC DDM Transceivers |
| Product No: | SFP-XGBL23-10D/SFP-XGBL32-10D |
| Date Rate: | 10Gbps |
| Wavelength: | 1270nm/1330nm |
Overview

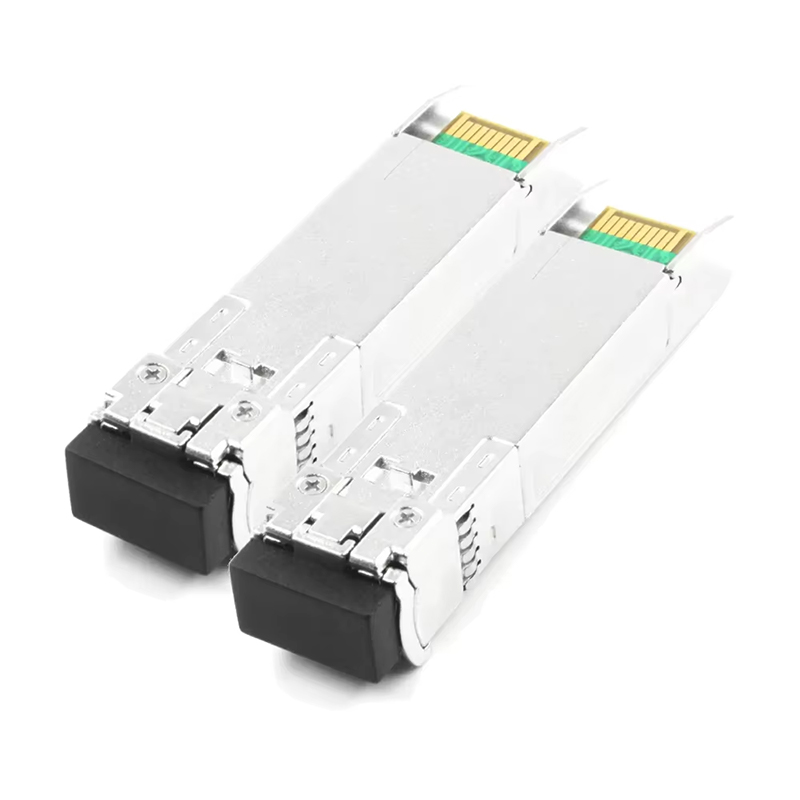

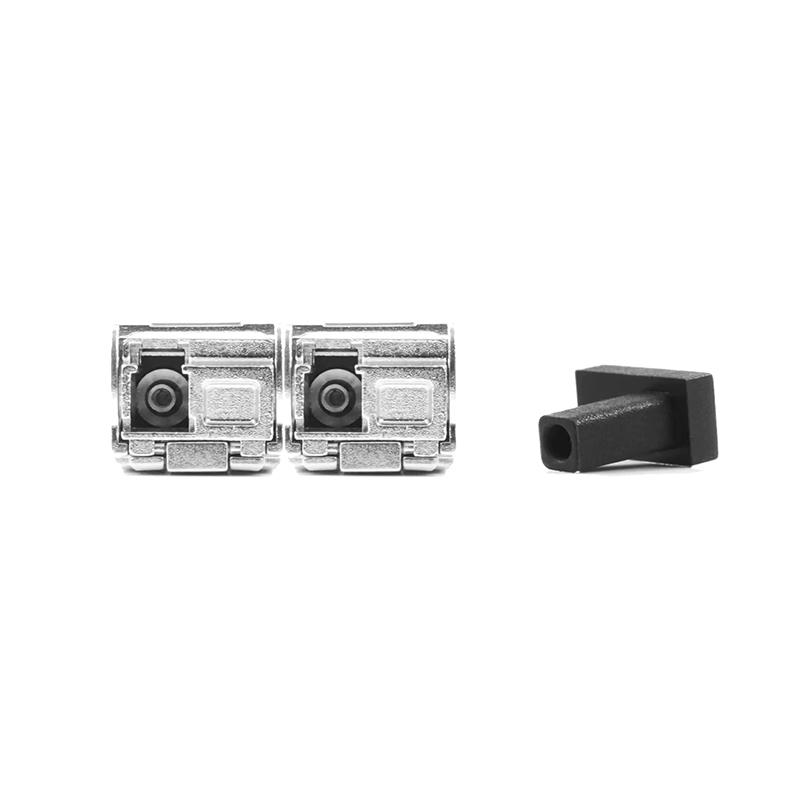

10G SFP+ BIDI LR 1270nm/1330nm 10Km LC DDM Transceivers
The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 10km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
【 Specification 】
Feature
• Supports up to 10.7Gbps bit rates
• Hot-pluggable SFP+ footprint
• 1330nm DFB laser and PIN photodiode, Up to 10km for SMF transmission
• Compliant with SFP+ MSA and SFF-8472 with single LC receptacle
• Compatible with RoHS
• Single +3.3V power supply
• Real Time Digital Diagnostic Monitoring
• Operating case temperature: Standard: 0 to +70°C ; Industrial:-40 to +85℃
| Product Name | 10G SFP+ BIDI LR 1270nm/1330nm 10Km LC DDM Transceivers |
| Product No | SFP-XGBL23-10D/SFP-XGBL32-10D |
| Date Rate | 10Gbps |
| Wavelength | 1270nm/1330nm |
| Source | DFB + PIN |
| Temperature | 0 to 70°C (32 to 158°F) |
| TX Power | 1~-5dBm |
| Receiver Sensitivity | < -14dBm |
| Media Type | SMF |
| Connector | LC simplex |
| DDM/DOM | Supported |
| Reach | 10km |
