| Product series: | optic fiber transceiver |
| Product name: | 10G SFP+ BIDI ZR 1490nm/1550nm 80Km LC DDM Transce |
| Form Factor: | SFP+ BIDI |
| Wavelength: | 1550nm/1490nm |
Overview

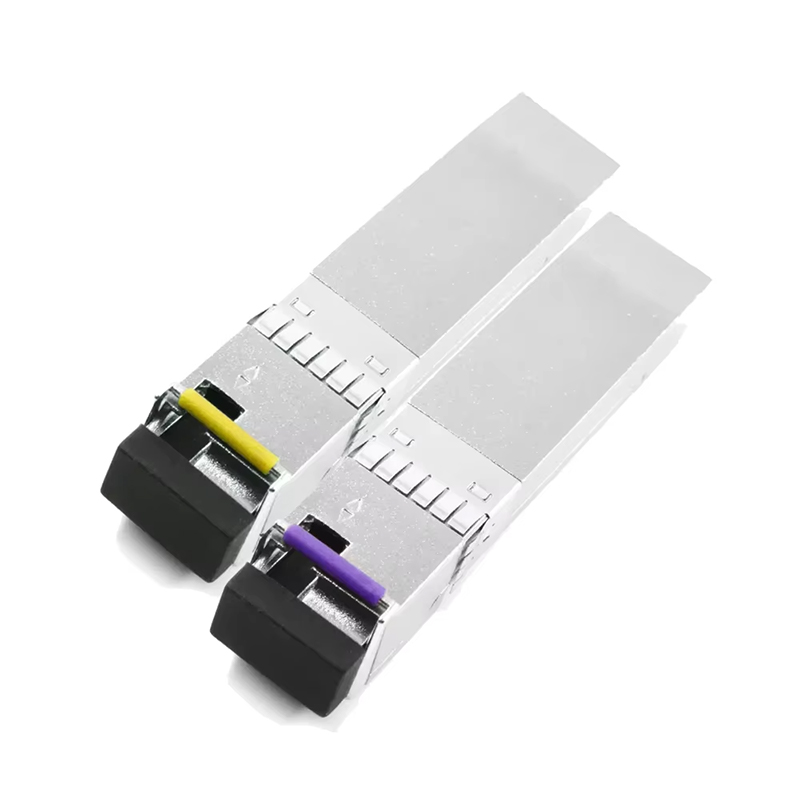

10G SFP+ BIDI ZR 1490nm/1550nm 80Km LC DDM Transceivers
It is a hot-pluggable small-form-factor Bi-Directional transceiver designed for use in 10-Gigabit Ethernet links up to 80km over a single-strand Single Mode fiber. It features a highly reliable 1550nm EML transmitter and 1490nm APD photo-detector into LC Simplex optical connector. This module is programmed to works with a wide range of Mikrotik equipment such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs), and Media Converters, which makes it be an ideal replacement to high-cost Mikrotik 10G BiDi SFP+ ZR optics.
【 Specification 】
Feature
• Supports up to 10.7Gbps bit rates
• Hot-pluggable SFP+ footprint
• 1490nm Cooled EML laser and APD photodiode, Up to 80km for SMF transmission
• Compliant with SFP+ MSA and SFF-8472 with single LC receptacle
• Compatible with RoHS
• Single +3.3V power supply
• Real Time Digital Diagnostic Monitoring
• Operating case temperature: Standard: 0 to +70°C ; Industrial:-40 to +85℃
| Specification | |||
| Product series | optic fiber transceiver | Product name | 10G SFP+ BIDI ZR 1490nm/1550nm 80Km LC DDM Transceivers |
| Form Factor | SFP+ BIDI | Data Rate | 10 Gb/s |
| Wavelength | 1550nm/1490nm | Fiber Type | SMF |
| Max Distance | 80KM | Optical Components | EML/APD |
| Transmitter Power | 0 ~ + 4 dBm | Extinction ratio | > 6 dB |
| Receiver Sensitivity | < - 22 dBm | Receiver Overload | > - 6 dBm |
| Connector | Single LC | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C | Weight | 0.03 kg |
| Storage: -40°C to 85°C | |||
| Apllication | 10GBASE-ZR/10GBASE-ZW Ethernet10G Fibre Channel | Compliance | IEC/EN 61000-4-2IEC-60825 |
| 10G Data Center Switches and Routers | RoHS | ||
