56Gbps QSFP+ Active Optical Cable

Overview

Product Description

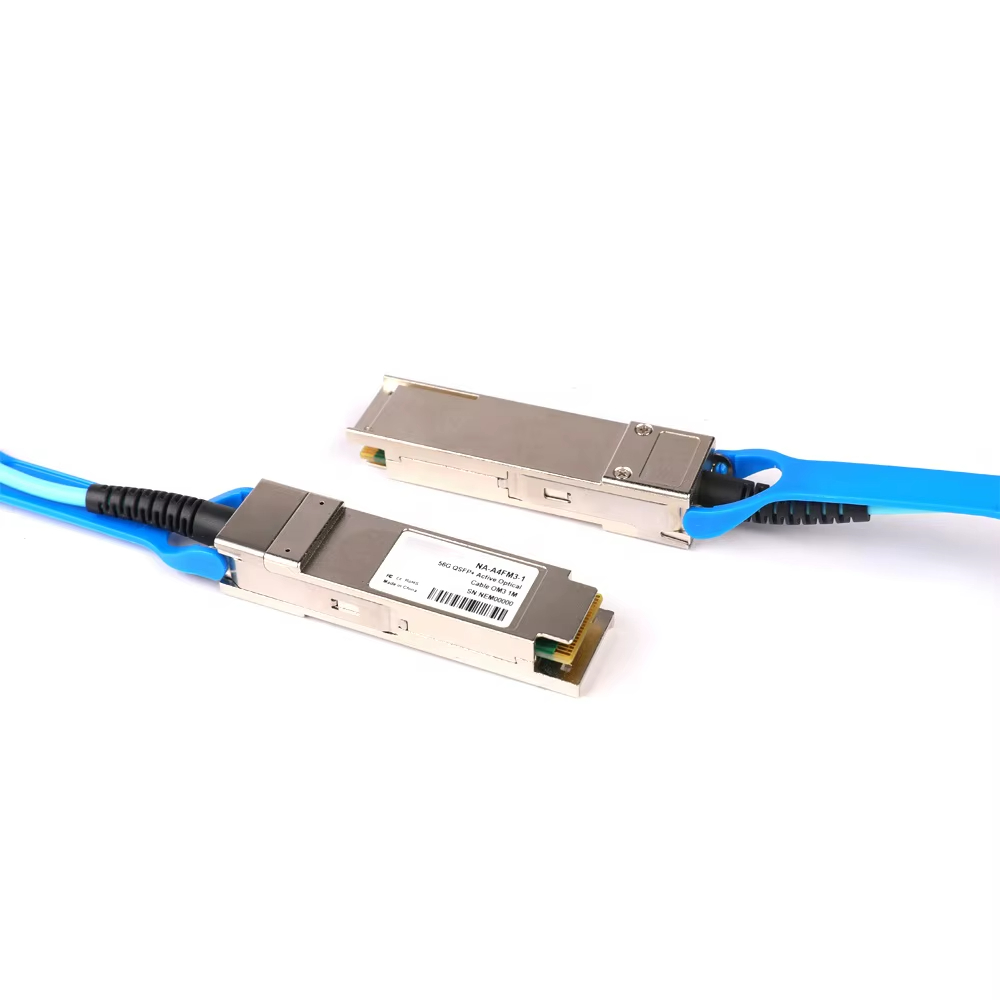

56Gbps QSFP+ Active Optical Cable

Description

FiberSpeed’s FS-A4FM3-XXX series are active optical cables (AOC) that allows bi-directional 56Gbps transmission suitable for Ethernet 40GBASE-SR4 and InfiniBand FDR application and other high-throughput data network, with advantages such as high speed, high density, low latency, low power consumption and light weight.

Applications

Low-latency and high-speed interconnections for high performance computing(HPC)

40G Ethernet SR4

Infiniband 56Gbase QSFP+

Other high-throughput data transmission network

Storage area Network(SAN)

Features

Quad Small Form-factor Pluggable (QSFP)

40GBASE-SR4 compliant

FDR (Infiniband) compliant

Bi-directional parallel link

16Gb/s per lane, x4 channels

Up to 100m

Low profile connectors

Low power consumption

Bundle multi-mode fiber array

850nm VCSEL four array

PIN diode four array

Hot-Pluggable

I2C management interface

From 0 to 70 degree case temperature

3.3V power supply voltage

Electrical 38-pin connector

Standard

Compliant with IEEE 802.3ba-2010,Annex 86A for 40GBASE-SR4

Compliant with InfiniBand FDR

Compliant with QSFP MSA(SFF-8436)

RoHS Compliant:lead-free

Table.2 Recommended Operating Conditions
