| Product Name: | 25Gbps SFP28+ Active Optical Cable |
| Maximum link length: | 100m |
| Date Rate: | 25Gbps |
| Wavelength: | 850nm |
Overview
Product Description

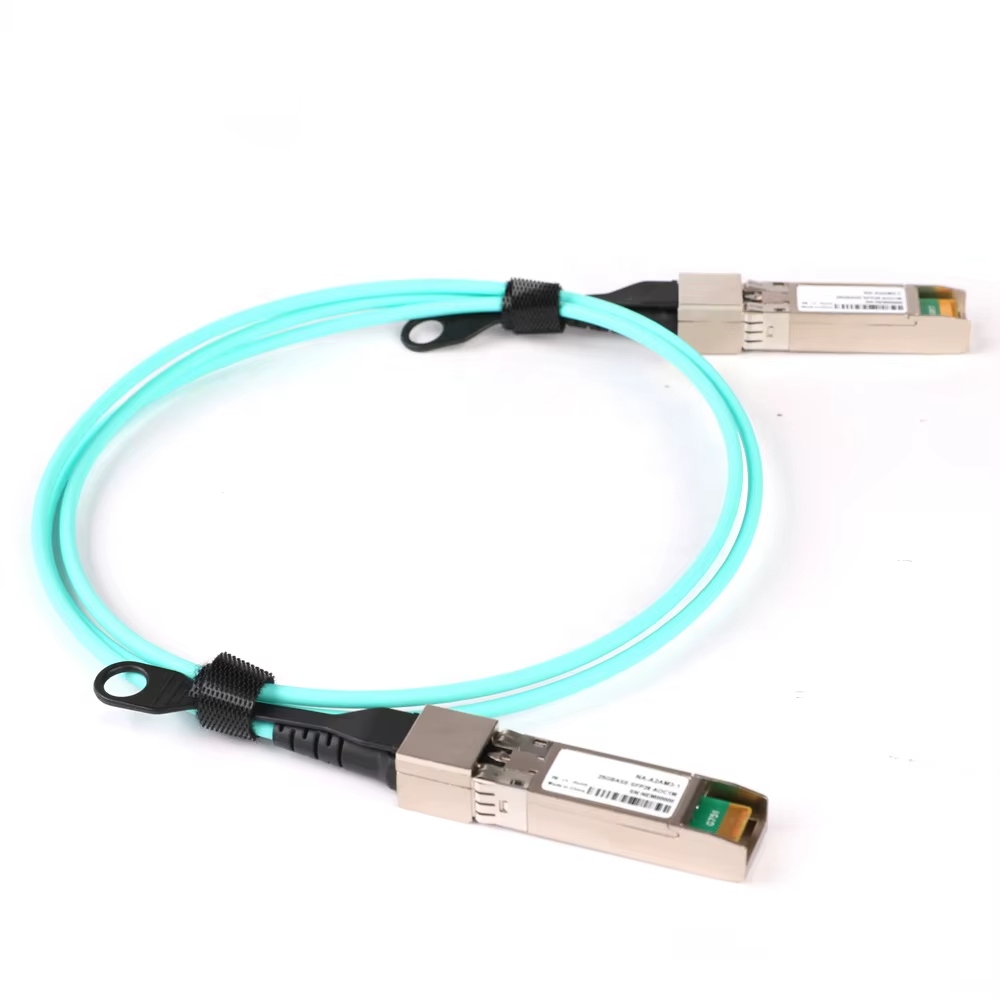

25Gbps SFP28+ Active Optical Cable
Description
Fiberspeed’s FS-A2AMX-XXX SFP28 Active Optical Cable (AOC) is a 25Gbps solution to25G Ethernet, and datacenter. The integrated cable transmits 25Gbps data in each direction over MMF with distance up to 100m. The AOC is SFP+ MSA compliance, low power consumption and lightweight.
Applications
25GBASE-SR Ethernet
Servers,switches,storage and host card adapters
Features
Electrical interface compliant to SFF-8431
850nm VCSEL laser and PIN photo-detector
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
Digital diagnostics functions are available via the I2C interface
Operating case temperature Commercial: 0°C to +70 °C
+3.3V single power supply
Power consumption less than 1W
RoHS compliant
Password protection for A0h and A2h
Standard
Compliant with SFF-8431 and SFF-8432
Compliant with SFF-8472 Rev 10.2
RoHS Compliant
Table.1 Absolute maximum ratings
| Parameter | Symbol | Min | Max | Units |
| Storage temperature | Ts | -40 | 85 | ℃ |
| Relative Humidity | RH | 5 | 85 | % |
| Supply Voltage | Vc | -0.3 | 3.6 | V |
| Supply Current | Icc | 450 | mA |
