| Product Name: | 1.25G SFP SX 850nm 550m LC MMF DDM Transceivers |
| Product No: | SFP-24MM85-5HD |
| Date Rate: | 1.25Gbps |
| Wavelength: | 850nm |
Overview

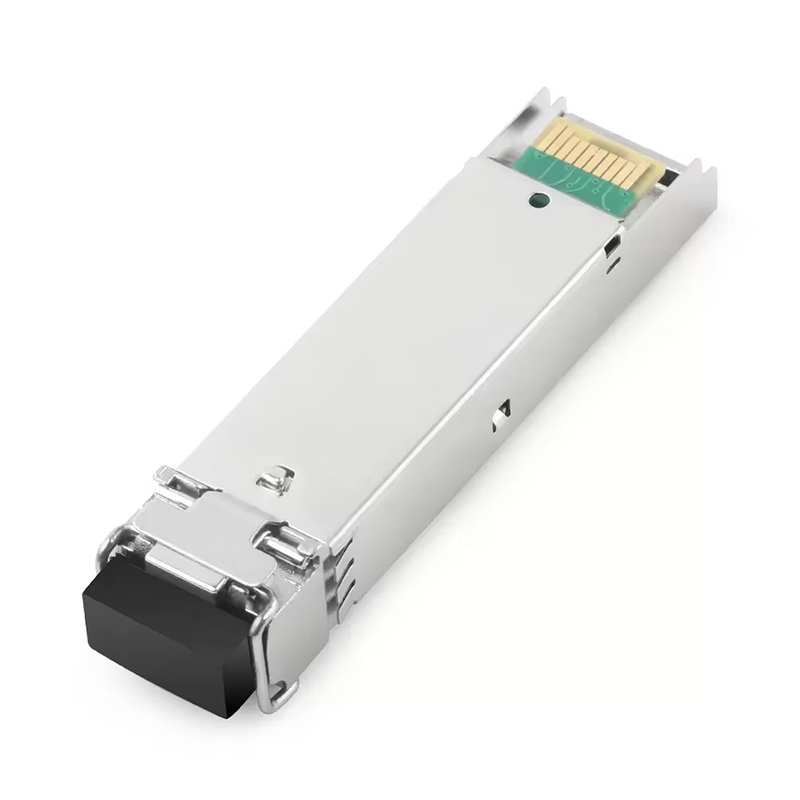

SFP-24MM85-5HD 1.25G SFP SX 850nm 550m LC MMF DDM Transceivers
The transceiver is a low power, high performance, cost effective module supporting data-rate up to 1.25Gbps 550m transmission distance. The transceiver incorporates TX_DIS control, TX-FAULT and RX_LOS monitor functions. The devices are Class I laser safety compliant.
【 Specification 】
Main Feature:
• Supports up to 1.25Gbps bit rates
• Hot-pluggable SFP footprint
• 850nm VCSEL laser and PIN photo detector, Up to 550m for MMF transmission
• Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
• Compatible with RoHS
• Single +3.3V power supply
• Real Time Digital Diagnostic Monitoring
• Operating case temperature:Standard: 0 to +70°C ; Industrial: -40 to +85°C
| Product Name | 1.25G SFP SX 850nm 550m LC MMF DDM Transceivers |
| Product No | SFP-24MM85-5HD |
| Date Rate | 1.25Gbps |
| Wavelength | 850nm |
| Reach | 550m |
| Source | VCSEL + PIN |
| Temperature | 0 to 70°C (32 to 158°F) |
| TX Power | -9.5 ~ - 3dBm |
| Receiver Sensitivity | < - 18dBm |
| Media Type | MMF |
| Connector | LC Duplex |
| DDM/DOM | Supported |
