| System Power Supply: | 11 V to 14 V DC, 1.5 A |
| Ports: | 1 POTS + 1 GE + 3 FE + 2.4G Wi-Fi |
| Optical Connector: | SC/APC |
| Wavelength: | TX: 1310nm, RX: 1490nm |

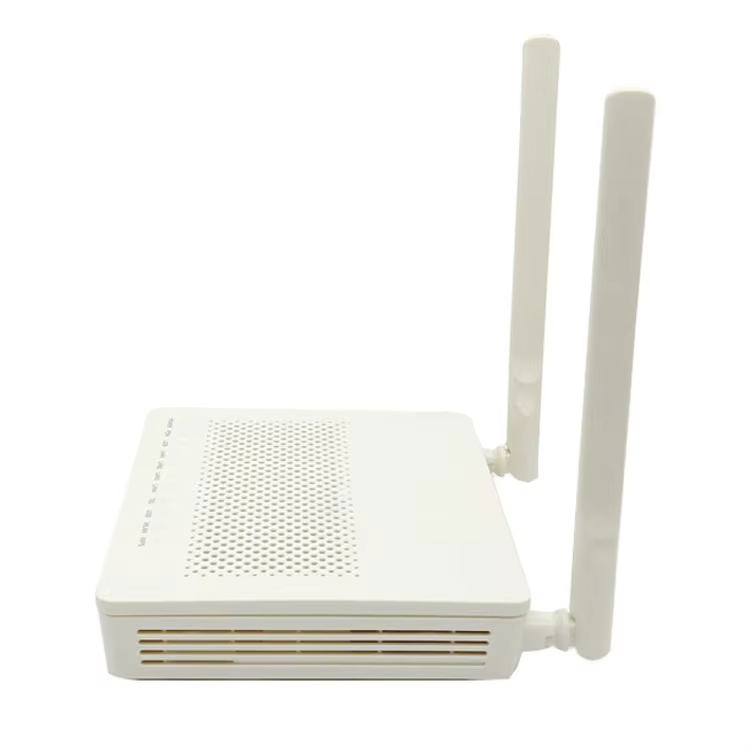

EchoLife EG8141A5
The EchoLife EG8141A5 provides one GE port, one POTS port, three FE ports and supports 2.4G Wi-Fi. The ONT features high-performance forwarding capabilities to ensure excellent experiences with VoIP, Internet, and HD video services. These features make the EG8141A5 a perfect choice for broadband access.
【 Specification 】
| Parameters | EchoLife EG8141A5 |
| Dimensions (H x W x D) | 152 x 105 x 30 mm |
| Weight | 192g |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 5% RH to 95% RH (non-condensing) |
| Power Adapter Input | 100 V to 240 V AC, 50 Hz/60 Hz |
| System Power Supply | 11 V to 14 V DC, 1.5 A |
| Static Power Consumption | 3.1W |
| Maximum Power Consumption | 7.5W |
| Ports | 1 POTS + 1 GE + 3 FE + 2.4G Wi-Fi |
| Optical Connector | SC/APC |
| Indicators | Power/PON/LOS/LAN/TEL/WLAN/WPS |
Feature
1.Support port-based rate limitation and bandwidth control .
2.Integrated OMCI remote configuration and maintenance function.
3.Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.
4.Support Dynamic Bandwidth Allocation (DBA) .
5.Support ONT auto-discovery/Link detection/remote upgrade of software;
6.Support VLAN division and user separation to avoid broadcast storm;
7.Support power-off alarm function ,easy for link problem detection.
8.Support broadcasting storm resistance function.
9.Support port isolation between different ports .
10.Support ACL and SNMP to configure data packet filter flexibly
