Overview
96 core dome fiber splice closure optical bamboo type joint closure
| Product name | Fiber Splice Box | IP Rate | IP65 |

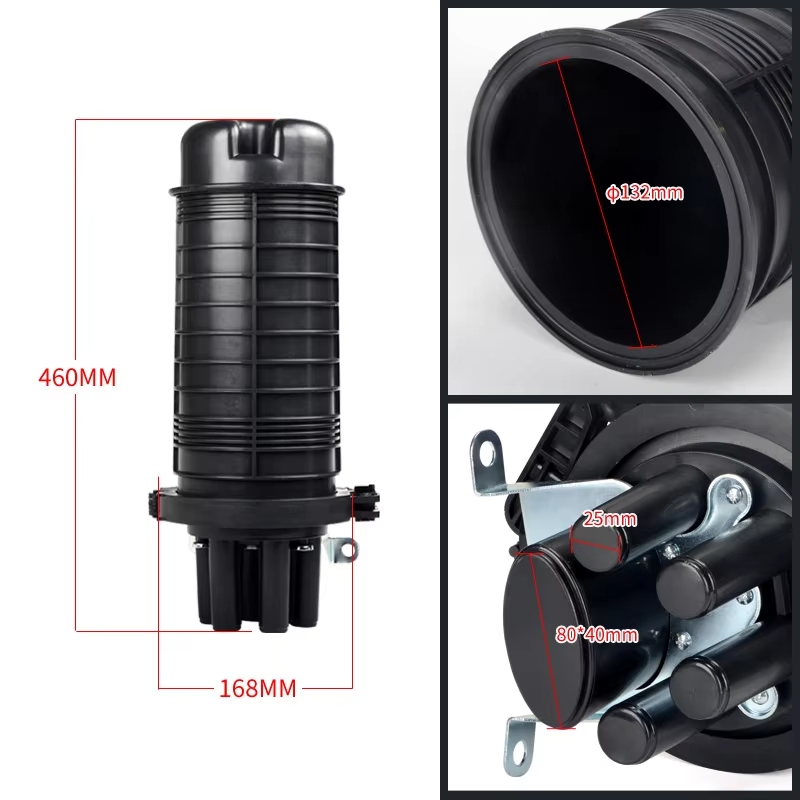

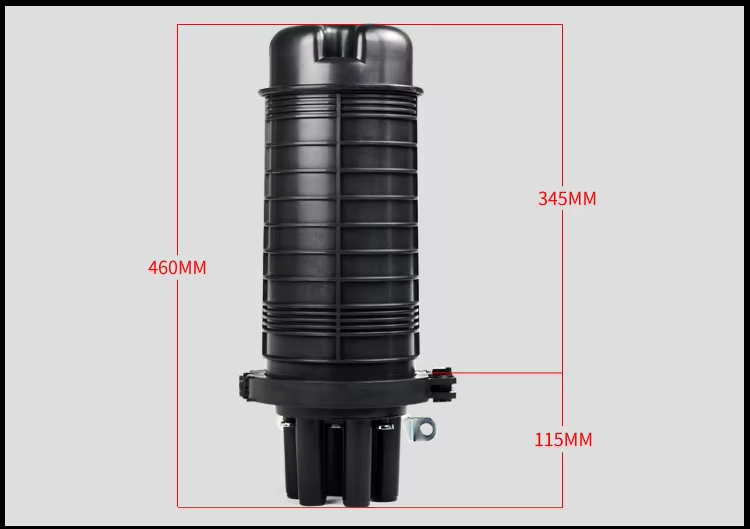

| Product Model | FCBF-96A | Packing Size | 460*168*200mm |
| Inner Box Size | φ132 mm | ||
| 465*170*210 mm | |||
| Ports | 1 inlet port 80*40mm | Packing Quantity | 8 pcs / carton |
| 4 out port φ25mm | 73*44*49cm 20.5kg | ||

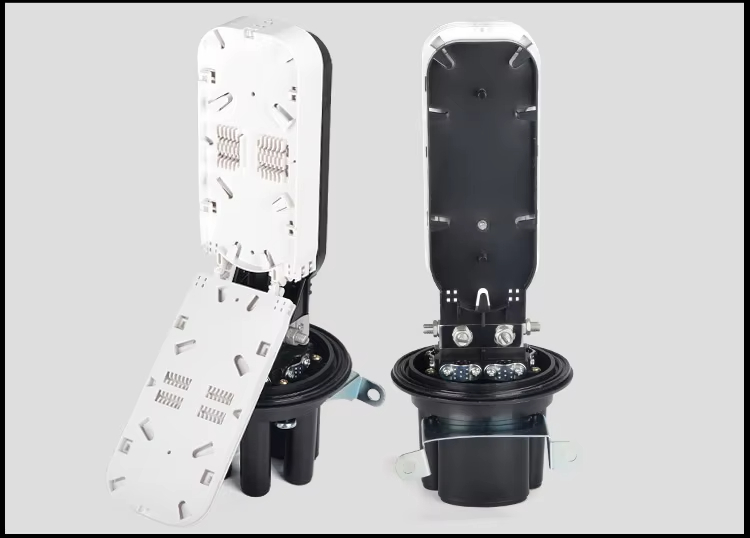

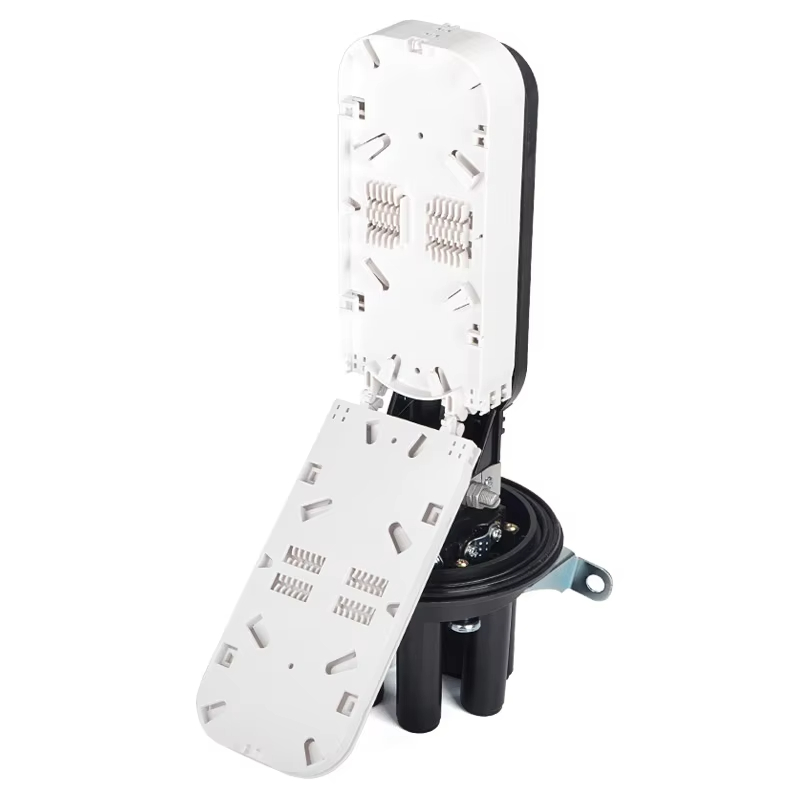

| Max Core | 24F/tray, max capacity 96F(4 trays) | Material | Polymer Plastic+Fiberglass |
| Installation Type | Vertical | G. weight | 2.4kg |
| Key Features: | 1.Suitable for ordinary fiber and ribbon fiber. | ||
| 2.Fully kitted with all parts for convenient operation. | |||
| 3.Overlap structure in splicing tray for easy installation. | |||
| 4.Fiber-bending radium guaranteed more than 40mm. | |||
| 5.Easy to install and re-entry with a common can wrench. | |||
| 6.Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability. | |||
| 7.Stand up to severe condition of moisture,vibration and extreme temperatures. | |||
| 8.Mechanical sleeve or heat shrinkable fixing sleeve for optional. | |||
