| Payment Type: | L/C,T/T,Discussed |
| Incoterm: | FOB,CIF,EXW,DDU,Express Delivery |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen,Shanghai |
| Supply Type: | Original Manufacturer |
| LC/APC Simplex Fiber Patch Cable Specifications: | |||
| Fiber Connector | Push/Pull Tab Uniboot to LC Push/Pull Tab LC Uniboot | Fiber Type | SM:Yellow/Blue/White; OM1&OM2: Orange; OM3:Aqua; |
| OM4:Aqua/Violet/ Magenta | |||
| Cable OD&Jacket | 1.6mm/1.7mm,/1.8mm/2.0 mm PVC/LSZH | Fiber Counts | 2 Fibers |
| Insertion Loss | ≤0.3dB(IEC Grade C) | Return Loss | SM UPC ≥ 50dB(min) SM APC ≥ 60dB(min) MM PC ≥ 35dB(min) |
| ≤0.12dB(IEC Grade B) | |||
| Pull-out Force | 100N | Durability | 500 Cycles |

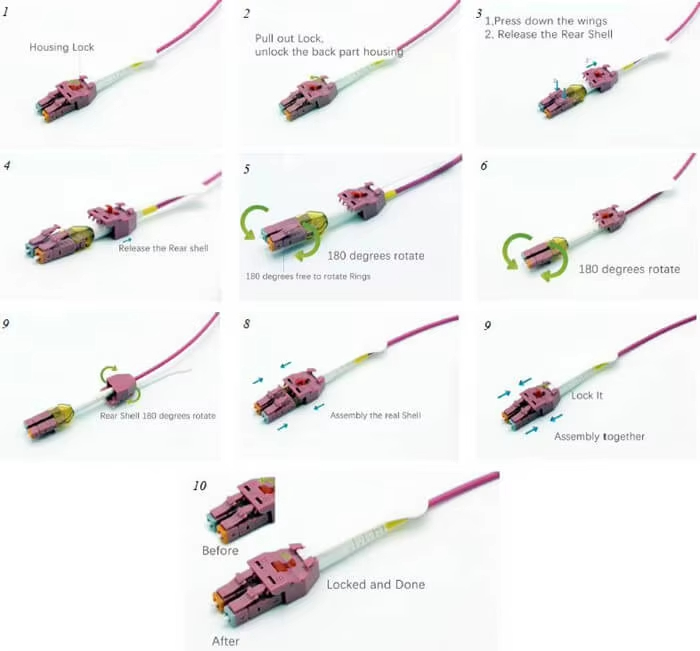

| AB Polarity Switchable | Available | Operating Temperature | -40 to + 85°C |
| Geometric Specification( if Customer requested) | |||
| Items | Parameter | ||
| Polishing | PC | APC | |
| ROC | LC | 7~ 25 | 5 ~ 12 |
| Apex Offset | ≤ 50 | ||
| Fiber Spherical Height | ±100 | ||
| Angle | ± 0.5 | 8 ± 0.5 | |
