| Payment Type: | L/C,T/T,Discussed |
| Incoterm: | FOB,CIF,EXW,DDU,Express Delivery |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen,Shanghai |
| Supply Type: | Original Manufacturer |

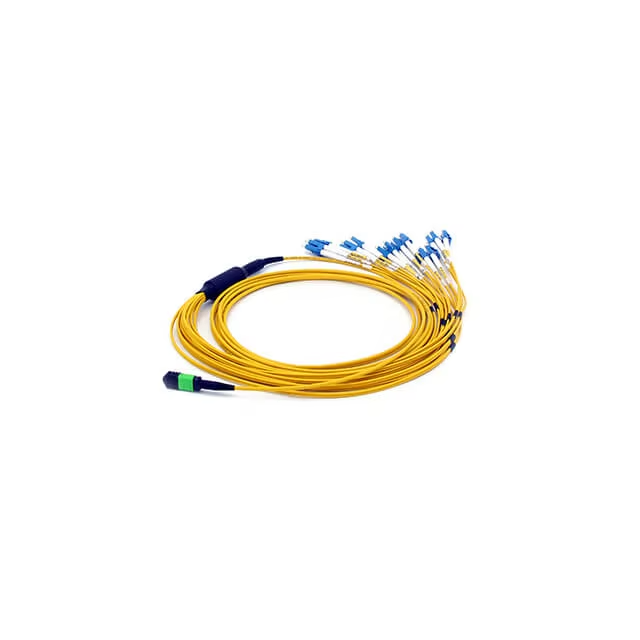

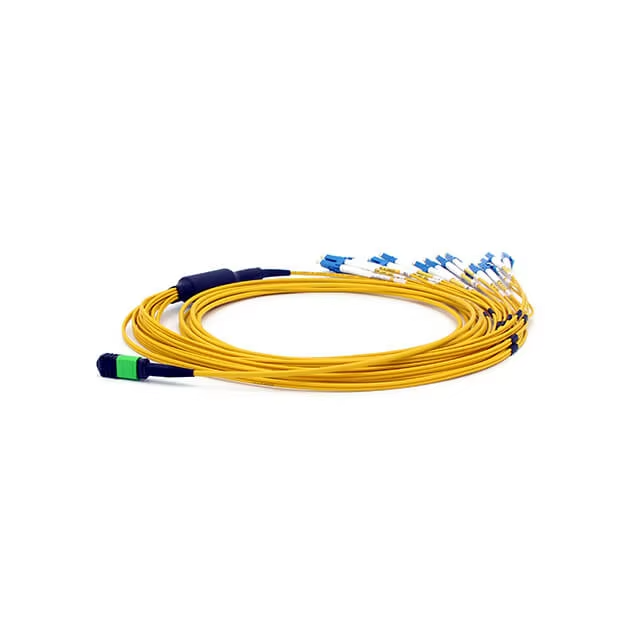

| MPO- LC Straight harness Cables' Specification: | ||
| Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) |
| Insertion loss (MPO) | Straight loss：≤0.75dB(max), ≤0.35dB(Typical) | Straight loss：≤0.6dB(max), ≤0.35(Typical) |
| (IEC 61300-3-34) | Super Low loss：≤0.35dB(max), ≤0.20dB(Typical) | Super Low loss：≤0.35dB(max) , ≤0.20dB(Typical) |
| Insertion loss (LC) | ≤0.3dB | ≤0.3dB |
| (IEC 61300-3-6) | ||
| Return loss(MPO) | ≥60dB（8degree polishing） | ≥25dB |
| Return loss(LC) | APC≥60dB; UPC≥50dB | ≥35dB |
| Durability | <0.3dBtypical change, 200 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Operating Temperature | -40 to + 85°C | |
