Overview
【 Specification 】

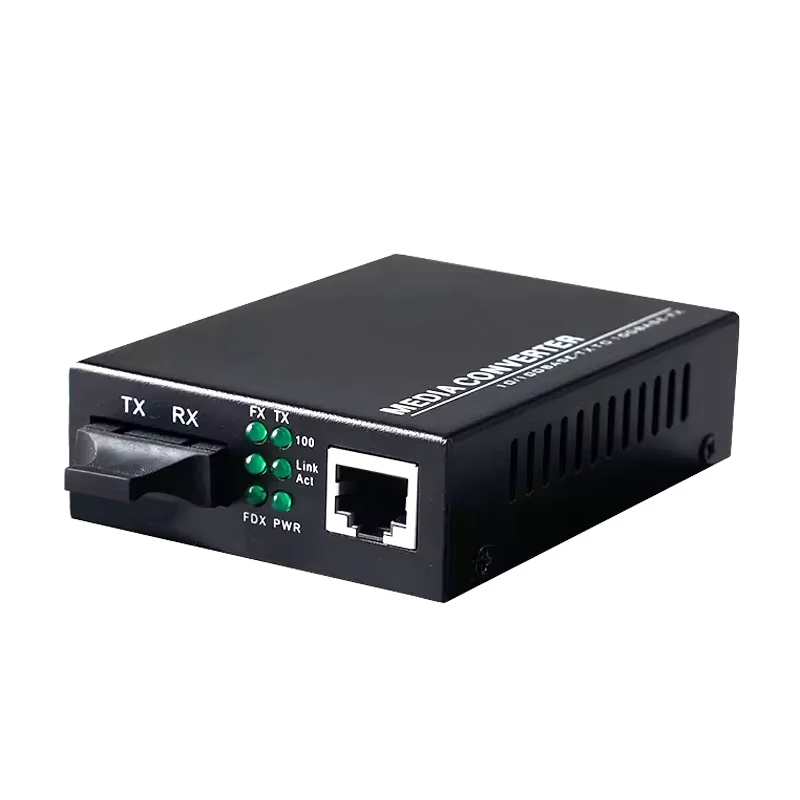

| Product | 10/100M Meida Converter SMF 1Fiber+1Rj45 20km |
| Standards | IEEE 802.3 10Base-T |
| IEEE 802.3u 100Base-TX | |
| Ethernet Port | Connector: RJ45 |
| Data Rate: 10/100M | |
| Distance: 100m | |
| UTP Type: UTP-5E or higher level | |
| Fiber Port | Connector: SC/FC/ST/SFP slot |
| Data Rate: 10/100Mbps | |
| Distance: 550m～120km | |
| Port | 1 RJ45 port, 1*dula fiber port (SC/LC/ST/FC Optional) |
| Forward / Filter Rate | 10M: 14,880/14,880pps |
| 100M: 148,800/148,800pps | |
| Power Supply | External : 5V DC 1A |
| Built-in: 100 V to 240 V AC 50Hz to 60Hz Power Consumption : ≤5W | |
| Operating Temperature | 0 °C to +70 °C |
| Storage Temperature | -20 °C to +80 °C |
| Relative Humidity | 5% to 90% (non-condensing) |
| Dimensions | 95mm * 70 mm * 26mm |
| Net Weight | 0.3 kg/pcs |
| Warranty | 2 Years |
Feature:
1. Support the switch between 100Base-TX and 100Base-FX
2. 1*155Mbps full-duplex fiber port and 1*100M Ethernet port
3. Each port has the complete LED Indicator light for installation, commissioning and maintenance
4. Support 9K Jumbo Packet
5. Support direct forwarding mode, less time delay
6. Less power consumption, only 1.5W in full load condition
7. Support isolation protection function, good data security
8. Small size, suitable for installation in various places
9. Adopt low power consumption chips to ensure longtime and stable operation
