Overview
【 Specification 】

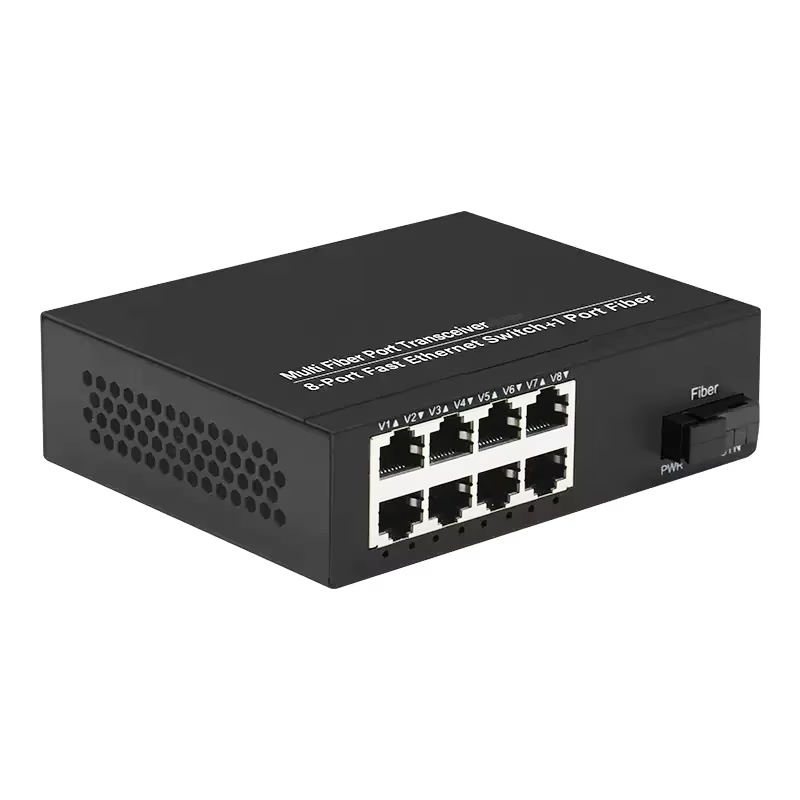

| Product | 10/100/1000M Switch SMF 1SC+8Rj45 |
| Standards | IEEE 802.3 10Base-T |
| IEEE 802.3u 100Base-TX | |
| IEEE 802.3ab 1000Base-TX/FX | |
| Ethernet Port | Connector: RJ45 |
| Data Rate: 10/100/1000M | |
| Distance: 100m | |
| UTP Type: UTP-5E or higher level | |
| Fiber Port | Connector: SC/FC/ST/SFP slot |
| Data Rate: 1.25Gbps | |
| Distance: 550m～120km | |
| Port | 8 RJ45 port, Single fiber port (SC/LC/ST/FC Optional) |
| Performance | Processing Type: Store and Forward |
| MAC Table Size: 2K | |
| Buffer Space: 1Mbit | |
| Maximum packet length: 9K | |
| Back bandwidth: 4G | |
| Time Delay: ＜20μs | |
| Forward / Filter Rate | 10M: 14,880/14,880pps |
| 100M: 148,800/148,800pps | |
| 1000M: 1,488,000/1,488,000pps | |
| Power Supply | External : 5V DC 3A |
| Built-in: 100 V to 240 V AC 50Hz to 60Hz | |
| Power Consumption : ≤15W | |
| Operating Temperature | 0 °C to +70 °C |
| Storage Temperature | -20 °C to +80 °C |
| Relative Humidity | 5% to 90% (non-condensing) |
| Dimensions | 125mm * 120 mm * 40mm |
| Net Weight | 0.89 kg/pcs |
| Warranty | 2 Years |
Feature:
1.Support the switch between 1000Base-T and 1000Base-SX/LX
2.1*1.25Gbps fiber port and 8*1000M Ethernet port
3.Each port has the complete LED Indicator light for installation, commissioning and maintenance
4.Support 9K Jumbo Packet
5.Support direct forwarding mode, which support less time delay
6.Low power consumption, only 1.5W in full load condition
7.Support isolation protection function, good data security
8.Small size, suitable for installation in various places
9.Auto-negotiation low power consumption chips to ensure very longtime and stable operation
